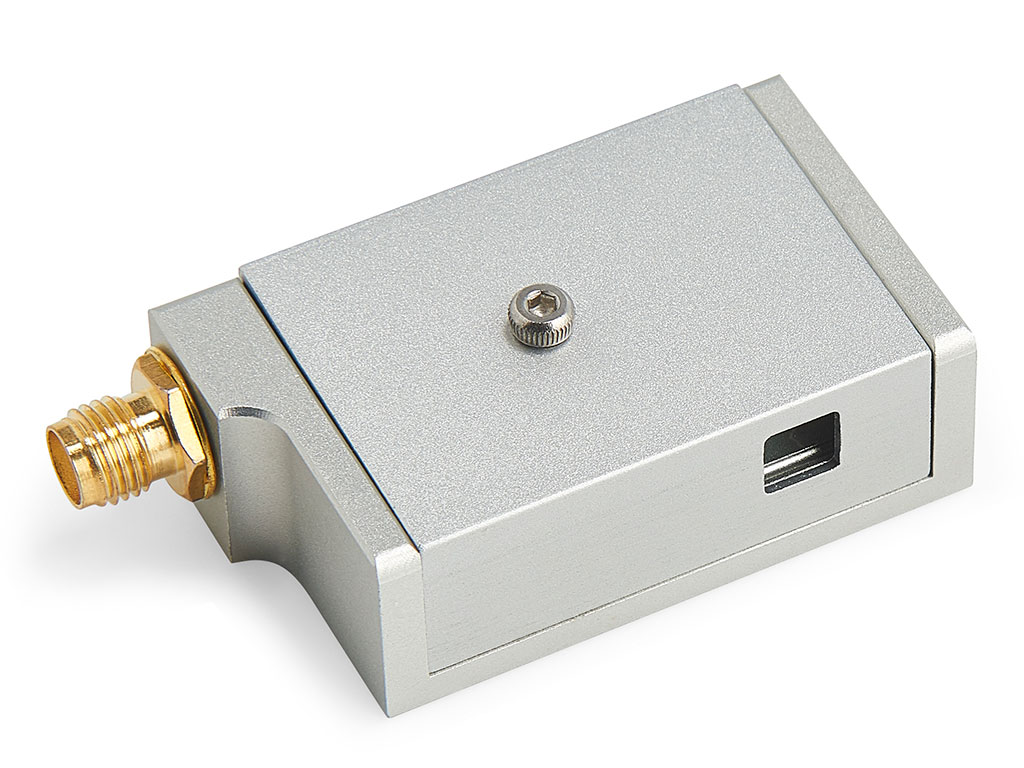

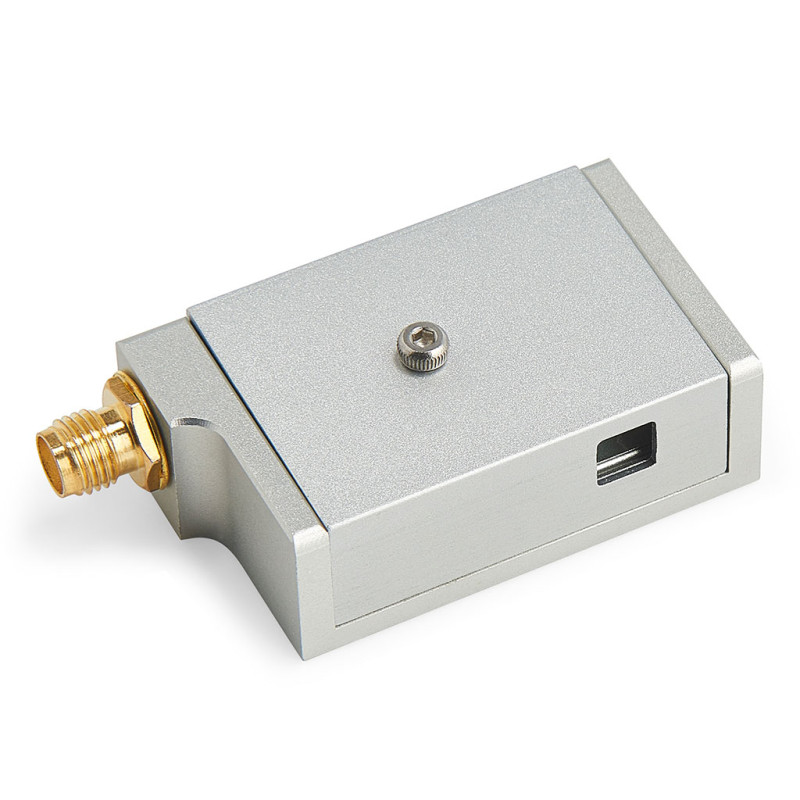

High Frequency AOM 632nm 200MHz 2.5W Free Space Acousto-Optic Modulator

Driver

Qty

[Applications]
Optical switch
Laser wavelength shift

Note: Lead Time: 3~4 weeks

[Specifications]

Parameter	Unit	Min	Typ.	Remarks
Material			TeO²
Wavelength	nm		632
Average Optical Power Density	W	250W/mm²
Ultrasonic Velocity	m/s		4200
Diffraction Efficiency	%		70
Center Frequency	MHz		200	Customizable
3dB Bandwidth	MHz		±20
Clear Aperture	mm		0.3	Customizable
RF Power	W		2.5
Rising Time	ns
Voltage Standing Wave Ratio			< 1.5:1
Input Resistance	Ω		50
Deflection Angle	mrad
Device Interface			SMA
Operating Temperature	℃		-10~+60
Storage Temperature	℃		-30~+70

$1,060.00
