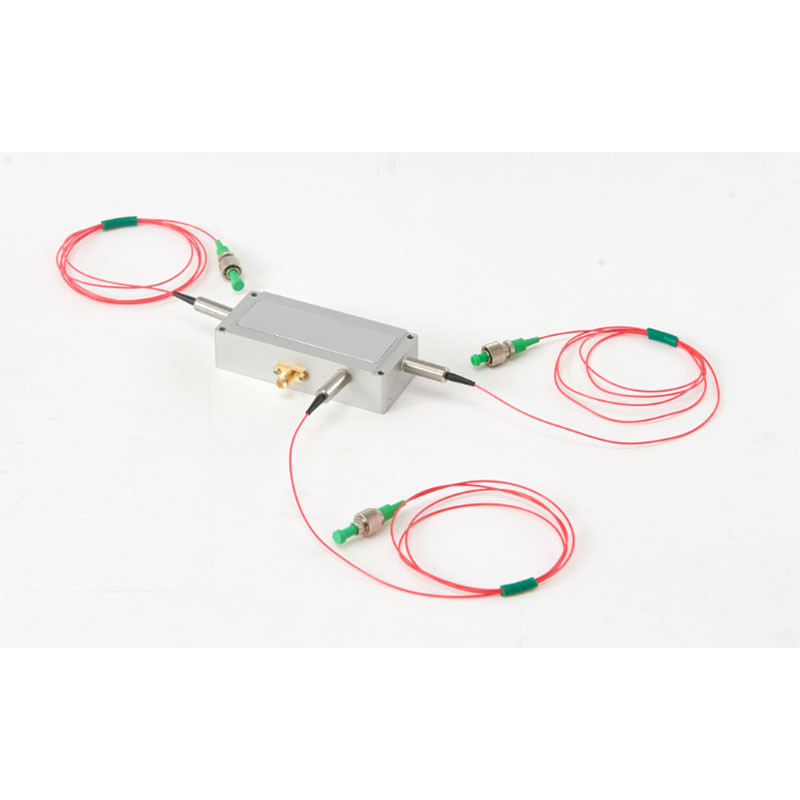

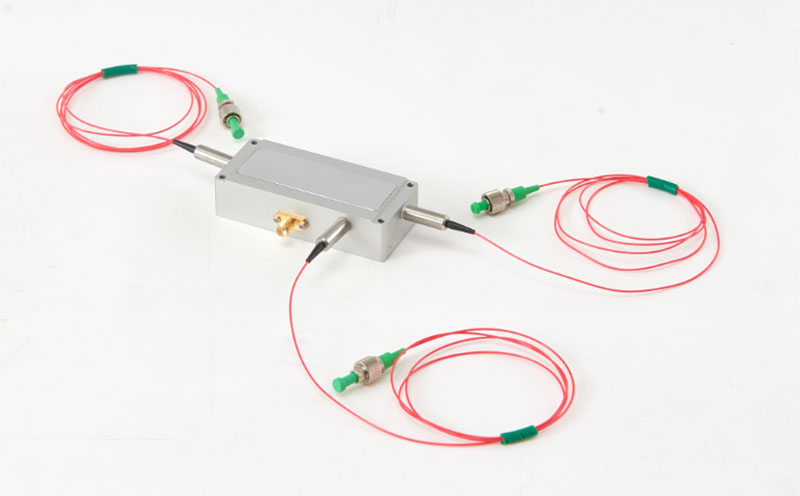

1550nm 80MHz Dual-Output Fiber-Coupled Acousto-Optic Modulator AOM Customizable
- Product Code: AOM-1550-80-FC-DU
- Availability: In Stock
$2,794.00
- Ex Tax: $2,794.00
1550nm 80MHz Dual-Output Fiber-Coupled Acousto-Optic Modulator AOM Customizable
[Features]
Optical fiber output of class 0 light and class 1 light.
Polarization-maintaining or single-mode fiber.
High extinction ratio.
Can be customized according to different wavelengths and frequencies.
Note:
Lead Time: 3~4 weeks
[Specifications]
| Parameter | Unit | Min | Max | Typ. | Remarks |
|---|---|---|---|---|---|
| Material | - | TeO² | |||
| Wavelength | nm | 1520 | 1580 | 1550 | Customizable |
| Average Optical Power | W | 0.5 | |||
| Ultrasonic Velocity | m/s | 4200 | |||
| Insertion Loss | dB | Class 1 light <2 Class 0 light <1.5 | |||
| Extinction Ratio | dB | Class 1 light >45 Class 0 light >10 | |||
| Return Loss | dB | 40 | |||
| Rising/Falling Time | ns | 60 | 70 | 65 | |
| Frequency | MHz | 80 | Customizable | ||
| RF Power | W | 2.5 | 2.5 | ||
| Voltage Standing Wave Ratio | - | 1.2:1 | |||
| Input Resistance | Ω | 50 | |||
| Device Interface | - | SMA | |||
| Fiber Type | - | SMF-28e / PM1550 | Customizable | ||
| Fiber Length | m | 1 | |||
| Fiber Interface | - | FC/APC | |||
| Operating Temperature | ℃ | -20~+60 | |||
| Storage Temperature | ℃ | -30~+70 | |||
