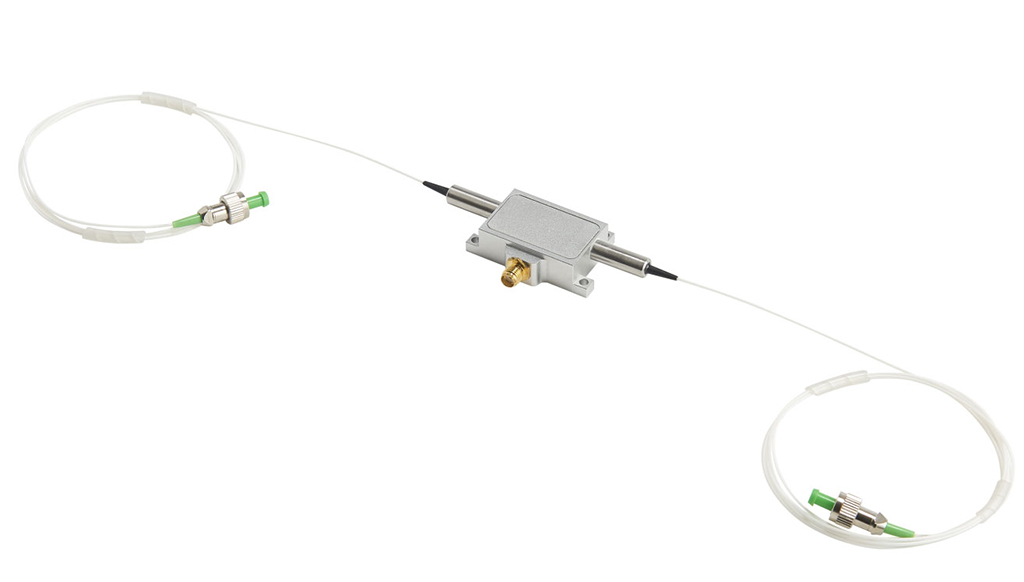

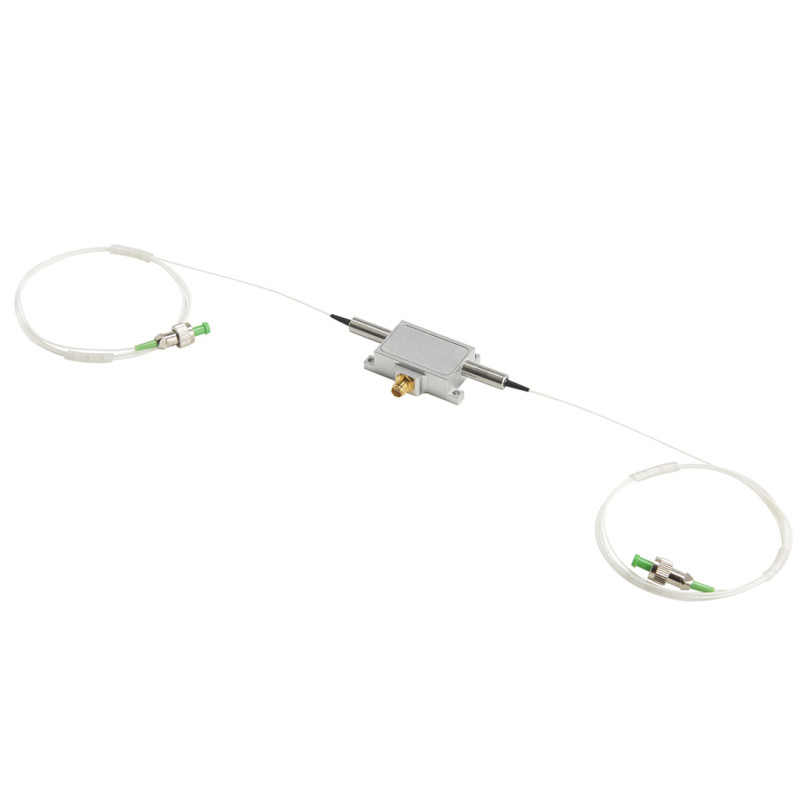

Fiber Coupled AOM 1550nm 150MHz 3W Acousto-Optic Modulator

Fiber Type

Driver

Qty

[Features]
Low insertion loss
Compact structure
Stable performance

[Applications]
Optical switch
Laser wavelength shift
DVS, B-OTDR and other vibration sensor measurement

Note: Lead Time: 3~4 weeks

[Specifications]

Parameter	Unit	Min	Max	Typ.	Remarks
Material	-			TeO²
Wavelength	nm	1520	1580	1550
Average Optical Power	W		0.5		Can be customized 5W
Ultrasonic Velocity	m/s			4200
Insertion Loss	dB	3	4	3.5
Extinction Ratio	dB	50
Polarization Extinction Ratio	dB	18	25	20
Return Loss	dB	40
Rising/Falling Time	ns	18	35	20
Frequency	MHz			150
Frequency Shift	MHz			±150	Optional
RF Power	W			3
Voltage Standing Wave Ratio	-	1.5:1
Input Resistance	Ω			50
Device Interface	-			SMA
Fiber Type	-	PM1550 / SMF-28e			Customziable
Fiber Length	m			1
Fiber Interface	-			FC/APC
Operating Temperature	℃			-20~+60
Storage Temperature	℃			-30~+70

$1,300.00
